REP-TAT-P-6110-25 Replacing wiring harness for front seat
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work:
Remove OUTER COVER ON FRONT SEAT .
Partially remove the front seat. Refer to REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or REMOVING AND INSTALLING FRONT SEAT, PASSENGER'S SIDE .
Attachment points of seat wiring harness

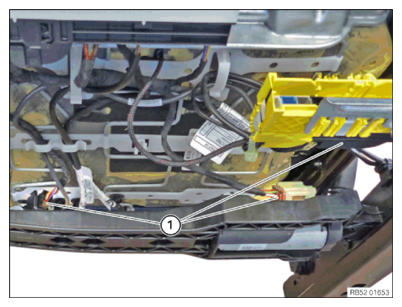

- Unlock and disconnect connector (1),

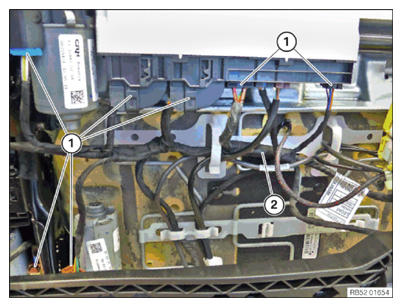

- Unlock and disconnect connector (1),
- Remove the wiring harness (2),
- Replace wiring harness (2),
Parts: Wiring harness
- Insert the wiring harness (2),
- Connect connectors (1) and lock,
- Connect connectors (1) and lock,

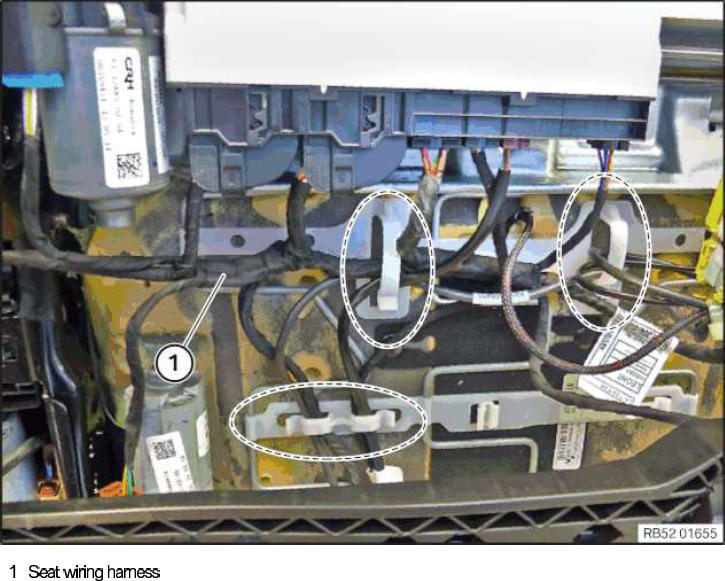

- Check if the wiring harness (1) and the cable are correctly fed into the marked areas,
Follow-up work:
Delete fault memory
