Removing and installing front left or right spring strut (EDC) (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary work:

Refer to REMOVING FRONT COWL PANEL COVER .
Refer to REMOVING THE FRONT WHEELS .

Removal:

If necessary, lever off protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolt (1), press brake pedal to floor for this purpose.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach pulse sensor cable from the brackets (1).

Disconnect plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

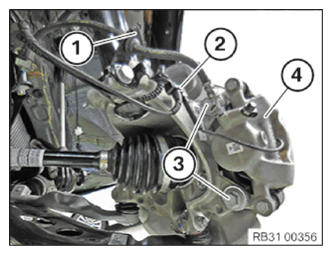

Release brake hose (1) from holder.

If necessary, release brake wear indicator (2) from holder.

Loosen screws (3).

Lay brake caliper (4) with brake-caliper support to one side and tight up.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Release anti-roll bar link (2) from spring strut.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Pull out screw (2).

Release wishbone (3) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Release track rod (2) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

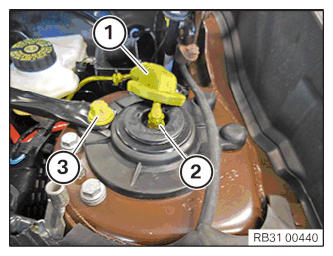

Remove protective cap (1) and unplug underlying connector (2) from the spring strut.

Release screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

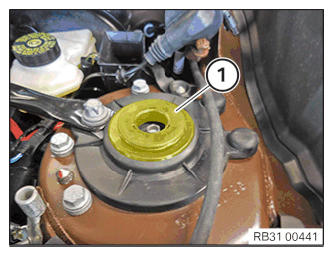

Remove adapter ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Lift the strut brace slightly and remove the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Secure spring strut against falling out.

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut (1) from wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If installed: Remove and dispose of the seal (1).

Clean contact surface at spring strut dome.

NOTE: Seal (1) is no longer installed.
The seal (1) can also only be omitted on one side (left or right).

Courtesy of BMW OF NORTH AMERICA, INC.

Guide the spring strut (1) into the wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Align spring strut to the bores in the spring strut dome using the centering pins.

Part: Replace screws (1).

Tighten screws (1).

Tightening torque 31 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Lift the strut brace slightly and put on cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure cover ring (1) is positioned correctly on strut brace facing (3).

Cover ring (1) must not be trapped between strut brace (2) and support bearing!

Courtesy of BMW OF NORTH AMERICA, INC.

Put on adapter ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (2) with the spring strut.

Mount protective cap (1).

Parts: Replace screw (3).

Tighten screw (3).

See TIGHTENING TORQUE .

Courtesy of BMW OF NORTH AMERICA, INC.

Join the wishbone (3) to the swivel bearing.

Part: Replace screw (2) and nut (1).

Insert screw (2) with washer.

CAUTION: The washer must lie between the screw head and the swivel bearing.
Note insertion direction of bolt (2). The screw (2) is inserted from the rear in the direction of travel.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on the nut (1).

Tighten screw connection.

Tightening is done via screw (2).

Tightening torque 31 12 1AZ .

Insert track rod (2) into the swivel bearing.

Part: Replace nut (1).

Tighten nut (1).

Tightening torque 32 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position anti-roll bar link (2) on spring strut.

Part: Replace nut (1).

Tighten nut (1).

Tightening torque 31 35 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position brake caliper (4) with brake-caliper support on swivel bearing.

Part: Replace screws (3).

Tighten down screws (3).

See TIGHTENING TORQUE .

Secure brake hose (1) on holder.

If necessary, secure brake wear indicator (2) on holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (2).

Attach the pulse sensor cable to the brackets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Pay attention to installation position of compression spring (2).
Keep collar bolt and spur toothing of wheel hub/output shaft clean and free of grease

CAUTION: Following installation note for spur gearing must be observed without fail!

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace collar bolt and compression spring.

Tighten collar bolt (1) and compression spring by hand.

Courtesy of BMW OF NORTH AMERICA, INC.

Front gearing of wheel hub (1) and output shaft (2) should be installed form-fit (tooth in tooth position).

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

Once a form-fit has been ensured, tighten to final torque.

Tightening torque 31 60 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, attach protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING FRONT WHEELS .
Refer to ATTACHING FRONT COWL PANEL COVER .
