Removing the central bass

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to REMOVING FRONT DOOR SILL COVER STRIP .
Refer to REMOVING THE FRONT STRAP FITTING .
Refer to REMOVING FRONT SEAT .

Loosen screws (1).
Remove the cover for the central bass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

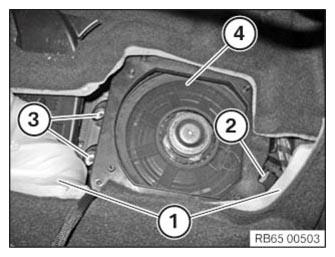

Fold up the carpet (1) as shown.
Unlock plug connection (2) and disconnect.
Loosen nuts (3).
Remove the central bass (4).

Courtesy of BMW OF NORTH AMERICA, INC.
