Installing the right front external radiator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

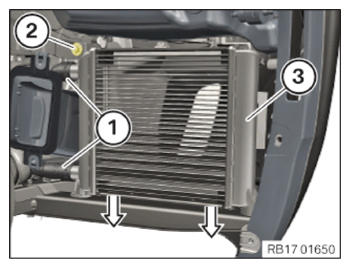

- Insert and install the external radiator (3) into the guides (arrows) in the direction of the arrow.
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| External radiator to holder | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
- Connect and lock the coolant lines (1) .
- Make sure that you can hear the coolant lines (2) engage.
- Remove the clamping pliers from the coolant lines (1) .
Follow-up work
- Refer to CONNECTING THE COOLANT LINE .
- Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to FILLING AND VENTING THE COOLANT CIRCUIT .
