Installing the coolant radiator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
- Feed in and install the coolant radiator (1) in the arrow direction.
- Tighten screws (1) on the charge air cooler.
TIGHTENING TORQUE SPECIFICATIONS
| Charge air cooler on coolant radiator | ||
|---|---|---|
| M6x12 | tightening torque | 6 Nm |
If installed: Connecting the coolant line

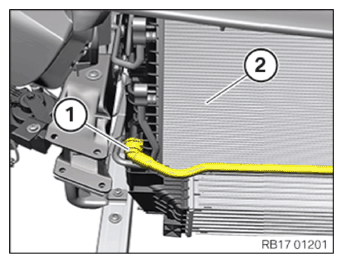

- Connect the coolant line (1) to the coolant radiator (2) and lock.
The coolant line (1) must engage audibly.

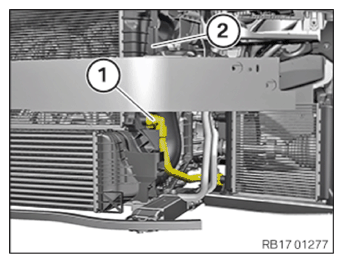

- Connect the coolant line (1) to the coolant radiator (2) and lock.
The coolant line (1) must engage audibly.
If installed: Install left and right brake ventilation duct
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Feed the air duct (3) into the holder with guide (4).
- Attach the air duct (3) with the screw (2).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Brake air duct to bracket | ||
|---|---|---|
| Screw | tightening torque | 4 Nm |
- Mount the expanding rivets (1).
- Connect and lock coolant line (1).
- Make sure that the coolant line (1) engages audibly.
- Connect and lock coolant line (1).
- Make sure that the coolant line (1) engages audibly.
- Connect and lock the coolant ventilation line (2).
- Make sure that the coolant ventilation line (2) engages audibly.
Follow-up work
- Refer to CONNECTING COOLANT LINE .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING AIR CONDITIONING CONDENSER .
- Refer to INSTALLING AIR DUCT TO RADIATOR .
- Refer to INSTALLING THE BUMPER CARRIER IN THE FRONT TOP .
- Refer to INSTALLING IMPACT ABSORBER .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING TEMPERATURE SENSOR .
- Refer to INSTALLING THE WASHER FLUID RESERVOIR IN THE MOUNT .
- Refer to PARTIALLY INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH COVER .
- Refer to PARTIALLY INSTALLING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
- Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to EVACUATE AND CHARGE CONDITIONING .
- Refer to FILLING AND VENTING THE COOLANT CIRCUIT .
