Replacing The Bonnet
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE JET CHAIN PARTIALLY .
- Refer to REMOVE HOOD .
Precondition
New part is painted.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Renew the bonnet.
Parts: Engine compartment lid
NOTE: The operations shown only for one side must be carried out on both sides. - Position the bonnet on the bonnet hinge. In so doing, observe the existing impressions of nuts (1) and (2).
- Support the bonnet.
- Tighten nuts (1) and (2).TIGHTENING TORQUE SPECIFICATIONS

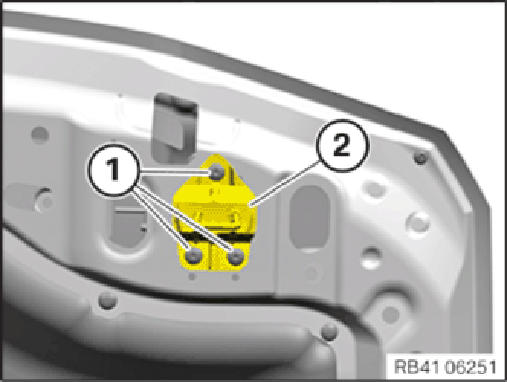

Bonnet Nut M8 Tightening torque 19 Nm NOTE: Perform the steps on the right and left side. - Loosen screws (1).
- Remove striker (2) and install on the new bonnet,
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS

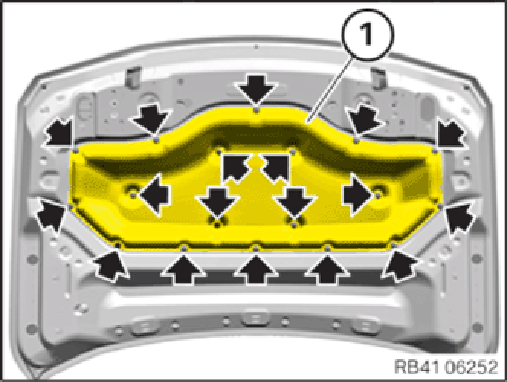

Striker console to bonnet Screw Tightening torque 8 Nm - Release all clips (arrows) with the special tool 2 298 505 .
- Remove damping material (1) and install on the new bonnet.
- Fit all clips,

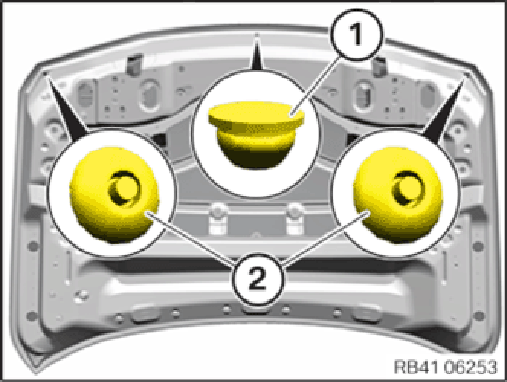

- Remove seal plugs (1) and (2) and install on the new bonnet.
- Remove seal plugs (1) and (2) and install on the new bonnet.

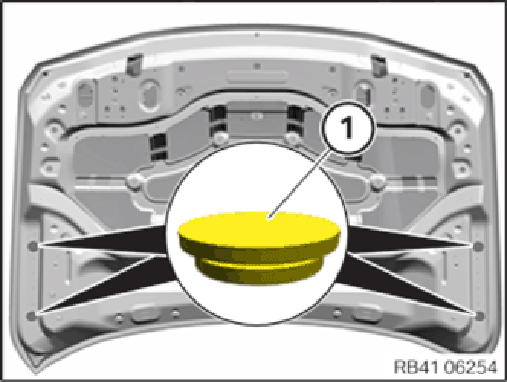

- Remove clip (1) and install on the new bonnet.
- Check the clips (1) for damage and renew if necessary.

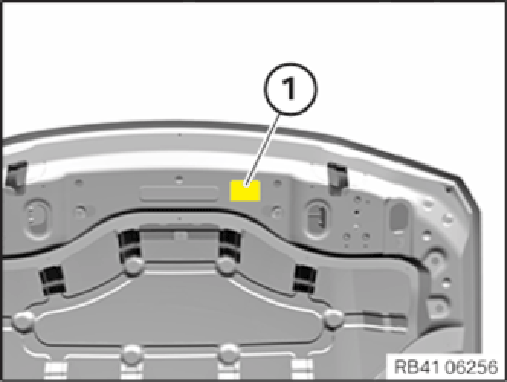

- Renew the sign (1).
Part: Label
- Stick the sign (1) onto the new bonnet.
Follow-up work
- Refer to INSTALLING JET CHAIN PARTIALLY .
