Install lock cylinder
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

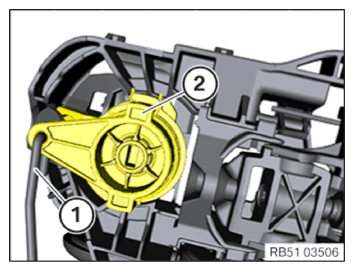

- Attach the locking rod (1).
- Install the lock cylinder (2) and turn it counter clockwise.

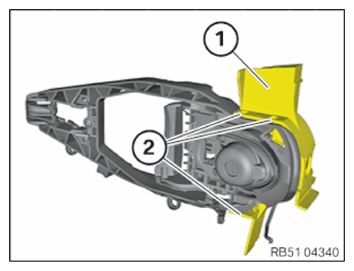

- Install the cover (1).
- Engage the cover (1) at the points (2).
Follow-up work
- Refer to INSTALLING THE OUTER DOOR HANDLE SUPPORT .
- Refer to PARTIALLY INSTALLING THE POWER WINDOWS .
- Refer to INSTALLING THE OUTSIDE DOOR HANDLE .
- Refer to INSTALLING THE COVER ON THE OUTSIDE DOOR HANDLE .
- Refer to INSTALLING SOUND INSULATION ON FRONT DOOR .
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
