Installing the outside door handle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

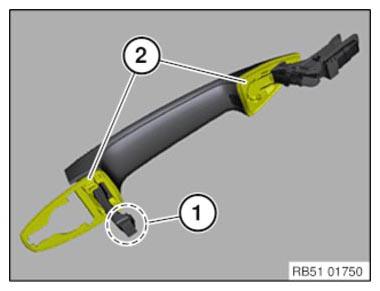

Check the fixture (1) for damage, if necessary replace the outside door handle.
Check the seals (2) for damage, replace if necessary. The seals (2) may not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

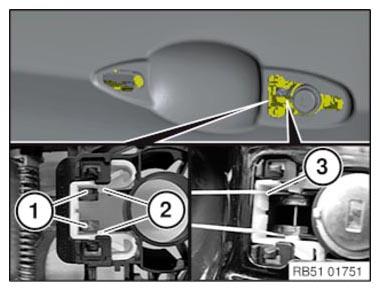

Ensure that, during the disassembly of the outside door handle, the lock actuation (1) is held in the installation position by the retaining clamps (2).
If the lock actuation (1) is not in the installation position, then pull the lock actuation (1) outwards with a string (3) and hold it.
Insert the outside door handle and feed it into the lock actuation (1) correctly.
Remove the string (3).
Carry out functional check with door open.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COVER ON THE OUTSIDE DOOR HANDLE .
