Removing and installing/replacing rear stabilizer bar (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Refer to LOWERING REAR AXLE SUPPORT .

Removal:

Slacken nut (1).

If necessary, counter-hold at the Torx socket.

Remove anti-roll bar link (2) from anti-roll bar on left and right.

G15170760

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove retaining brackets.

Feed out anti-roll bar to one side.

G15170761

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in anti-roll bar from the side and position.

Mount the retaining bracket.

Tighten down screws (1).

Tightening torque 33 55 3AZ .

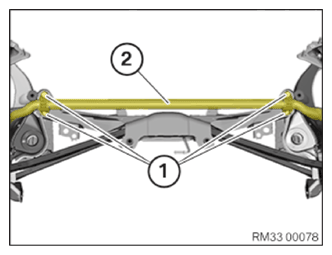

G15170762

Courtesy of BMW OF NORTH AMERICA, INC.

Insert anti-roll bar link (2) into anti-roll bar on left and right.

Replace nuts (1).

Parts: Nuts

Tighten down nuts (1).

If necessary, counter-hold at the Torx socket.

Tightening torque 33 55 1AZ .

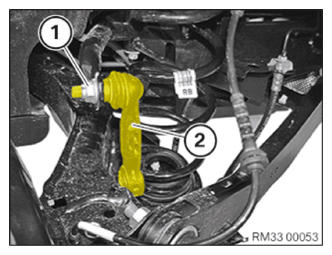

G15170763

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to RAISE REAR AXLE SUPPORT .
