Lowering/raising rear axle support (FWD) (X2 sDrive 28i 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the vehicle hoist and critically injuring other persons.
Make sure when supporting components that

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the lifting platform.

Necessary preliminary work:

Refer to REMOVING REAR WHEELS .
Refer to REMOVING EXHAUST SYSTEM .
Refer to REMOVING TANK COVER ON LEFT AND RIGHT .

Lowering:

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

G15170653

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (1).

G15170654

Courtesy of BMW OF NORTH AMERICA, INC.

Only for rear ride height sensor:

Disconnect connector (1).

G15170655

Courtesy of BMW OF NORTH AMERICA, INC.

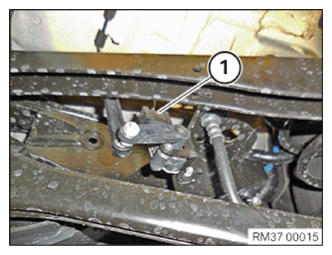

Release screw (1) of anti-roll bar links on left and right on the trailing arms.

G15170656

Courtesy of BMW OF NORTH AMERICA, INC.

Release hollow nut (2).

Detach brake hose (1) on left and right from the brake lines.

G15170657

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Release cable (3) on left and right from the cable clips (2).

G15170658

Courtesy of BMW OF NORTH AMERICA, INC.

Support the rear axle support (1) using the universal jack (2).

G15170659

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from rear axle support (2).

Lower rear axle support by approx. 10 cm.

G15170660

Courtesy of BMW OF NORTH AMERICA, INC.

Raising:

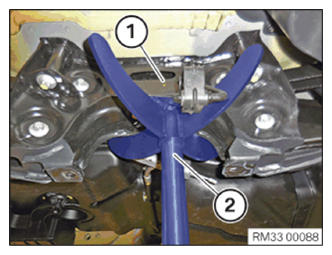

Align rear axle support (1) and raise using the universal jack (2).

G15170661

Courtesy of BMW OF NORTH AMERICA, INC.

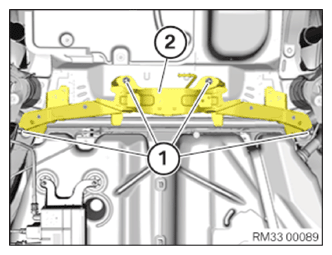

Tighten down screws (1) on rear axle support (2).

Tightening torque 33 31 1AZ .

G15170662

Courtesy of BMW OF NORTH AMERICA, INC.

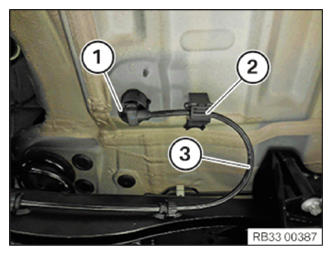

Insert connector (1) and lock.

Secure cable (3) on left and right using the cable clips (2).

G15170663

Courtesy of BMW OF NORTH AMERICA, INC.

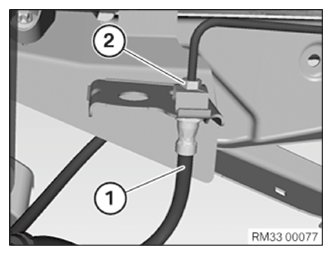

Position the brake hose (1) on left and right.

Attention!

Do not twist the brake hose!

Tighten down hollow nut (2).

See TIGHTENING TORQUE .

G15170664

Courtesy of BMW OF NORTH AMERICA, INC.

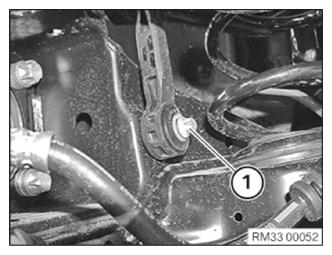

Tighten down anti-roll bar links on left and right with screw (1) on trailing arm.

Tightening torque 33 55 2AZ .

G15170665

Courtesy of BMW OF NORTH AMERICA, INC.

Only for rear ride height sensor:

Insert connector (1) on ride height sensor.

G15170666

Courtesy of BMW OF NORTH AMERICA, INC.

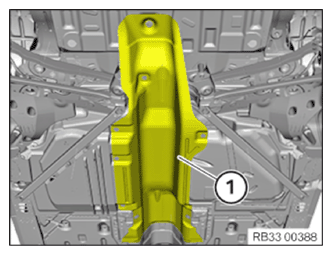

Install heat shield (1).

G15170667

Courtesy of BMW OF NORTH AMERICA, INC.

Release pedal support.

G15170668

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING EXHAUST SYSTEM .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
Refer to FLUSHING AND BLEEDING THE REAR AXLE BRAKE CIRCUIT .
Refer to INSTALLING REAR WHEELS .
