Replacing left or right support bearing for shock absorber (X2 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 2 355 965
- 2 355 966
NOTE:
A separate procedure is to be followed for EDC SHOCK ABSORBERS
.
Necessary preliminary work:
- Refer to REMOVING REAR SHOCK ABSORBER .
Removal:

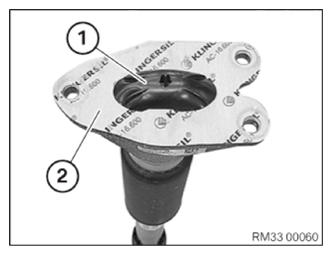

Remove protective cap (1).
Remove gasket (2).

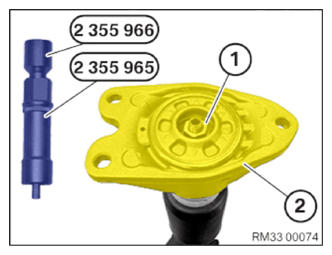

Use special tools 2 355 965 and 2 355 966 to undo the nut (1).
Remove spring strut mounting (2).
Impact screwdrivers are prohibited!
Risk of damage inside the shock absorber!
Installation:

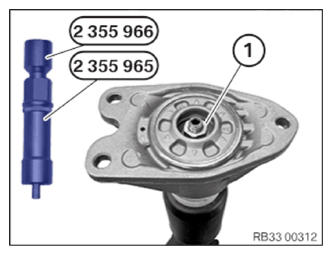

Place new support bearing on shock absorber.
Part: Replace nut (1).
Screw on nut (1) and tighten with special tool 2 355 965 and 2 355 966.
Tightening torque 33 52 3AZ .
Impact screwdrivers are prohibited!
Risk of damage inside the shock absorber!
NOTE:
Seal (2) may be omitted or must not be reinstalled!
Remove protective cap (1).
Check protective cap (1) for damage.
Part: Replace protective cap (1) if necessary.
Mount protective cap (1).
Required follow-up work:
- Refer to INSTALLING REAR SHOCK ABSORBER .
