Replacing rear axle support (FWD) (X2 sDrive 28i 2018-2023)

Necessary preliminary work:

• Refer to REMOVING REAR WHEELS .
• Refer to REMOVING EXHAUST SYSTEM .
• Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
• Remove all wishbones. Refer to REMOVING AND INSTALLING/REPLACING TOP RIGHT WISHBONE  .

Removal:

Press brake pedal down to floor and secure with pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

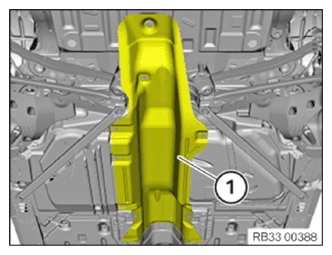

Remove heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release hollow nut (2).

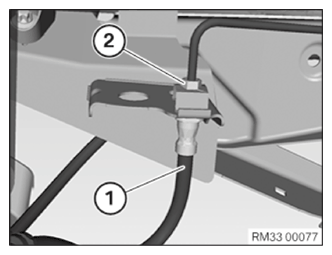

Disconnect brake hose (1) on left and right from the brake line.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for rear ride height sensor:

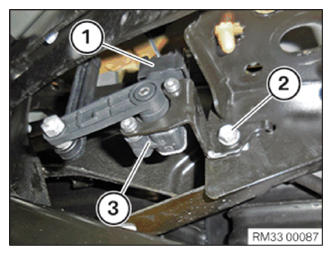

Disconnect connector (1).

Release screw (2).

Remove ride height sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

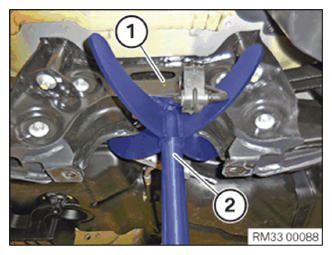

Support the rear axle support (1) using the universal jack (2).

Courtesy of BMW OF NORTH AMERICA, INC.

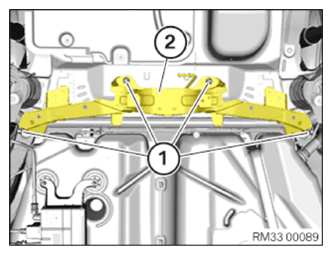

Release screws (1) from rear axle support (2).

Lower rear axle support by approx. 10 cm.

Courtesy of BMW OF NORTH AMERICA, INC.

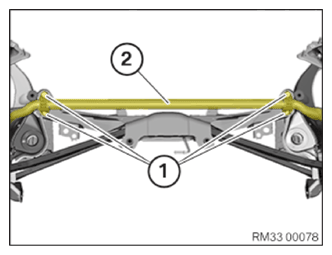

Release screws (1) from anti-roll bar (2).

Courtesy of BMW OF NORTH AMERICA, INC.

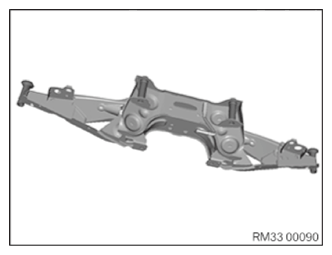

Remove rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position the rear axle support on the vehicle using the universal jack.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down anti-roll bar (2) with screws (1) on rear axle support.

Tightening torque 33 55 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down rear axle support (2) with screws (1) on vehicle.

Tightening torque 33 31 1AZ .

Lower the universal jack and put it away.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for rear ride height sensor:

Position ride height sensor.

Tighten screw (2).

Tightening torque 37 14 3AZ .

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the brake hose (1) on left and right.

Attention!

Do not twist the brake hose!

Tighten the brake line by means of the hollow nut (2).

See TIGHTENING TORQUE .

Courtesy of BMW OF NORTH AMERICA, INC.

Install heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to FLUSHING AND BLEEDING THE REAR AXLE BRAKE CIRCUIT .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING REAR WHEELS .
• Perform wheel alignment. Refer to KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
