Removing and installing/replacing top right wishbone (X2 2018-2023)

Necessary preliminary work:

• Refer to REMOVING RIGHT REAR WHEEL .
• Refer to REMOVING THE RIGHT TANK COVER .

Removal:

Only for right ride height sensor:

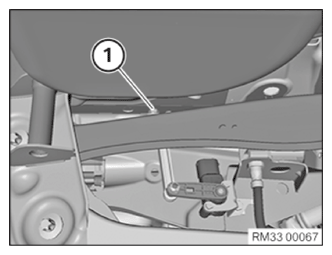

Release screws (1) for jointed rod on wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.

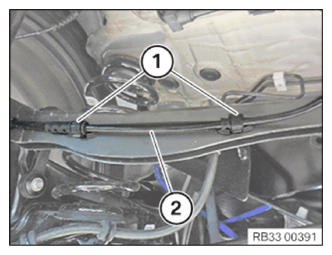

Remove cable (2) from holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut and remove screw (2).

Release nut and remove screw (1).

Take off wishbone.

Installation note:

Tighten screw connection (1) and (2) in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

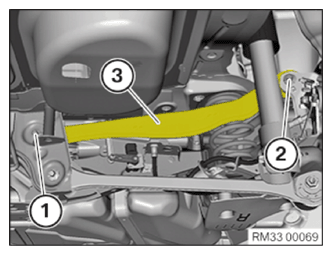

Align wishbone (3).

Replace screw and nut.

Insert bolt (2) and screw on nut.

• Do not yet tighten to specified torque

Parts:  Bolt and nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screw (1) and nut.

Insert bolt (1) and screw on nut.

• Do not yet tighten to specified torque

Parts:  Bolt and nut

Move vehicle into NORMAL POSITION .

Tighten nut of bolt (1) and (2) in normal position.

Tightening torque 33 32 1AZ .

Tightening torque 33 32 3AZ .

Secure cable (2) on wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for right ride height sensor:

Tighten screws (1) for jointed rod on wishbone.

Tightening torque 37 14 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to MOUNT RIGHT TANK COVER .
• Refer to INSTALLING REAR WHEEL ON THE RIGHT
• Perform wheel alignment. Refer to KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
