Replacing the rear axle differential ventilation line (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 407 851
23 4 150

Necessary preliminary work:

Refer to REMOVING COMPLETE EXHAUST SYSTEM .
Refer to REMOVING THE RIGHT TANK COVER .
Remove heat shields. Refer to REMOVING FRONT HEAT SHIELD , and REMOVING HEAT SHIELD AT REAR , and REMOVING HEAT SHIELD AT UPPER EXHAUST TURBOCHARGER .

Removal:

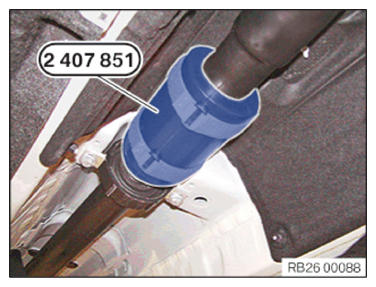

In order to protect the propeller shaft, install special tool 2 407 851 between the front and rear propeller shaft.

CAUTION: The arrows on special tool 2 407 851 must point to the front in the direction of travel during the installation.

Courtesy of BMW OF NORTH AMERICA, INC.

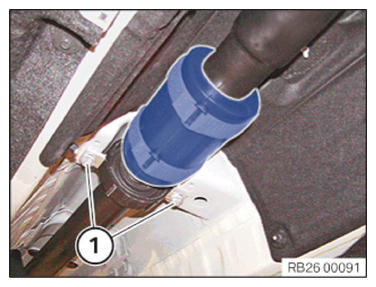

Unfasten screws (1).

Tie the propeller shaft must be tied away without fail or supported with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

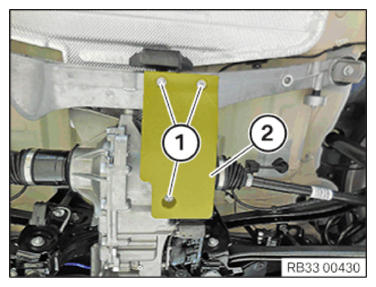

Unfasten screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

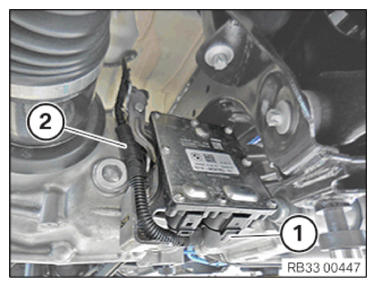

Disconnect connector (1).

Loosen cable (2) from control unit holder.

Courtesy of BMW OF NORTH AMERICA, INC.

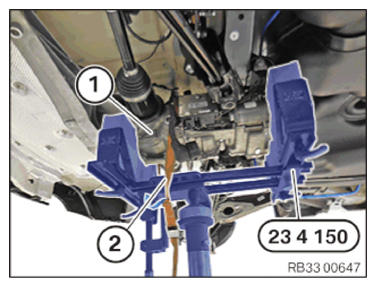

Support the rear axle differential (1) with the universal jack and special tool 23 4 150.

Secure rear axle differential (1) with tensioning belt (2) on special tool 23 4 150.

Courtesy of BMW OF NORTH AMERICA, INC.

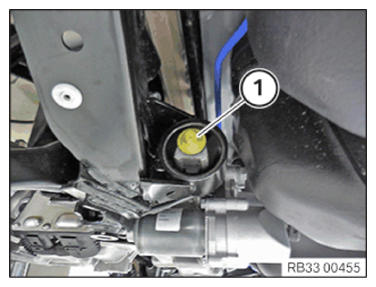

Release screw (1) of rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

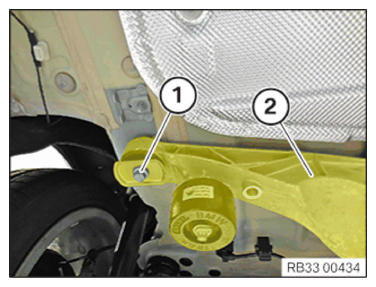

Undo screws (1) on left and right of cross member (2) (right side identical).

Courtesy of BMW OF NORTH AMERICA, INC.

Lower rear axle differential (1) by a maximum of 10 cm.

Courtesy of BMW OF NORTH AMERICA, INC.

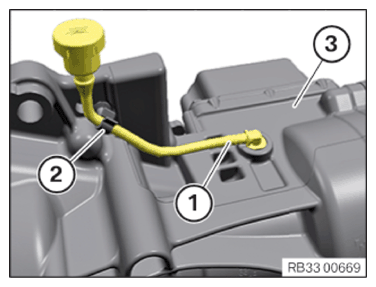

Release ventilation line (1) from holder (2).

Release ventilation line (1) out of rear axle differential (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Risk of damage:

So as not to damage the O-ring of the ventilation line during installation, apply a light coating of BMW HOK oil to the O-ring prior to installation.

Position ventilation line (1) on rear axle differential (3) and secure.

Secure ventilation line (1) on holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Raise rear axle differential (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) of rear axle differential by hand.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left and right of cross member (2) (right side identical).

Tightening torque 33 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 17 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove tensioning strap (2).

Lower universal jack using special tool 23 4 150 and put away.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable (2) on control unit holder.

Connect connector (1) to control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (2).

Tighten down screws (1).

Tightening torque 33 31 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 26 11 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 2 407 851.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install heat shields. Refer to INSTALLING FRONT HEAT SHIELD , and INSTALLING THE REAR HEAT SHIELD , and INSTALLING THE HEAT SHIELD ON THE EXHAUST TURBOCHARGER, TOP .
Refer to INSTALLING RIGHT TANK COVER .
Refer to COMPLETELY INSTALLING THE EXHAUST SYSTEM .
