Lowering/raising the rear axle differential (release left or right output shaft) (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 358 630
23 4 150
2 406 773
33 5 120
0 496 862
33 5 122
2 406 774

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION:

The rear axle final drive must not be tilted by more than 45° during the installation procedure.
The circlip of the output shaft must be replaced!

Necessary preliminary work:

Refer to REMOVING RIGHT REAR WHEEL .
Refer to REMOVING COMPLETE EXHAUST SYSTEM .
Remove heat shields. Refer to REMOVING FRONT HEAT SHIELD , and REMOVING HEAT SHIELD AT REAR , and REMOVING HEAT SHIELD AT UPPER EXHAUST TURBOCHARGER .
Refer to REMOVING AND TYING BACK PROPELLER SHAFT ON REAR AXLE DIFFERENTIAL .
Refer to REMOVING RIGHT TANK COVER .
Refer to REMOVING RIGHT COIL SPRING .

Removal:

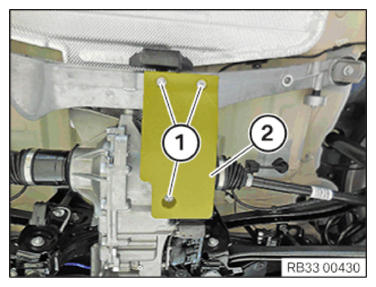

Unfasten screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

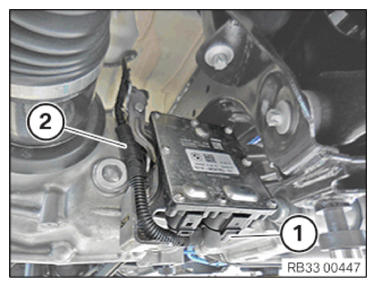

Disconnect connector (1).

Loosen cable (2) from control unit holder.

Courtesy of BMW OF NORTH AMERICA, INC.

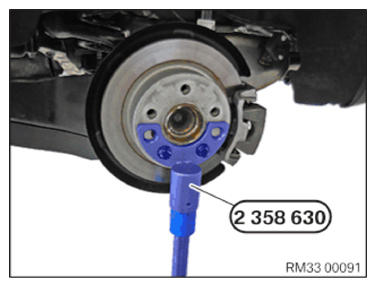

Secure special tool 2 358 630 with wheel studs to drive flange.

Press wheel hub upward with special tool 2 358 630 and workshop jack.

Courtesy of BMW OF NORTH AMERICA, INC.

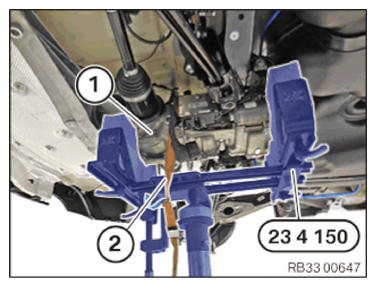

Support the rear axle differential (1) with the universal jack and special tool 23 4 150.

Secure rear axle differential against falling out with tensioning strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

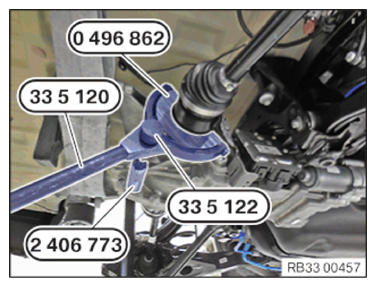

Insert left or support tool 2 406 773 into the bore hole on the rear axle differential.

Press left or right output shafts out of rear axle differential with jerky movements using special tool 33 5 120 and shaped element 0 496 862.

In the process, position the thrust piece of the screw 33 5 122 on the support tool 2 406 773

Courtesy of BMW OF NORTH AMERICA, INC.

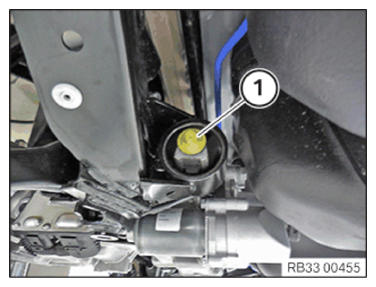

Release screw (1) of rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

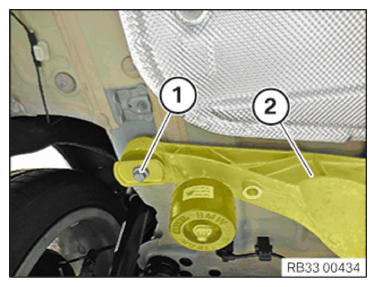

Undo screws (1) on left and right of cross member (2) (right side identical).

Courtesy of BMW OF NORTH AMERICA, INC.

Lower rear axle differential (1).

Feed left or right output shaft out of differential by shifting rear axle differential sideways.

Courtesy of BMW OF NORTH AMERICA, INC.

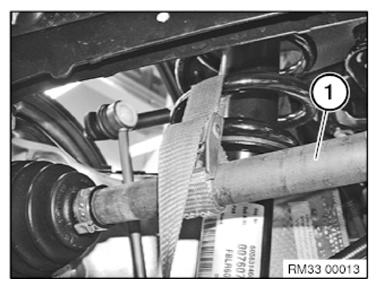

Do not allow output shaft (1) to hang on the joints.

Tie up output shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace RADIAL SHAFT SEAL OF LEFT OR RIGHT OUTPUT SHAFT .

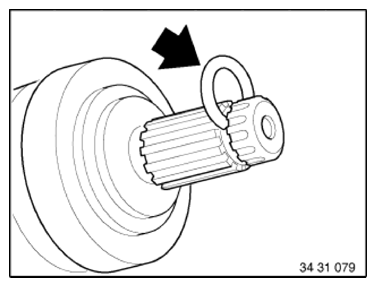

Replace circlip of output shaft.

Parts: Circlips

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Make sure the installation protection ring has been reinstalled before inserting the output shaft.

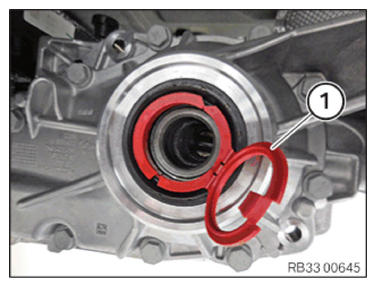

Fold open installation protection rings (1) on left or right.

Courtesy of BMW OF NORTH AMERICA, INC.

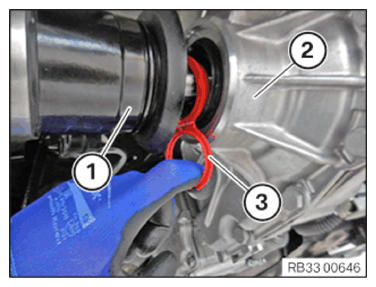

Feed output shafts (1) into the differential on the left or right by shifting the rear axle differential to the side.

After having inserted the output shaft pull on the installation protection ring tab (3) until one of the two predetermined breaking points gives in.

Pull out and dispose of the installation protection ring (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Raise rear axle differential (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) of rear axle differential by hand.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left and right of cross member (2) (right side identical).

Tightening torque 33 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 17 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

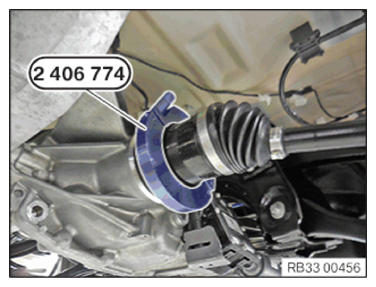

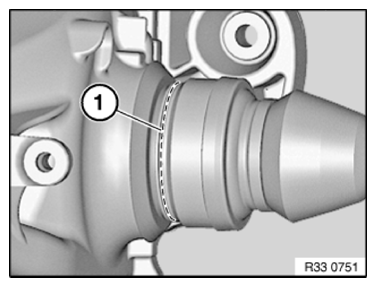

NOTE: Special tool 2 406 774 must be inserted in the circular slot (1) of the output shaft!

Courtesy of BMW OF NORTH AMERICA, INC.

Drive left or right output shaft with special tool 2 406 774 and a rubber mallet into rear axle final drive.

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack.

NOTE: Do not yet remove special tool 2 358 630 (is required to install the coil spring).

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable (2) on control unit holder.

Connect connector (1) to control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (2).

Tighten down screws (1).

Tightening torque 33 31 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING RIGHT COIL SPRING .
Refer to INSTALLING RIGHT TANK COVER .
Refer to INSTALLING PROPELLER SHAFT ON REAR AXLE DIFFERENTIAL .
Install heat shields. Refer to INSTALLING FRONT HEAT SHIELD , and INSTALLING THE REAR HEAT SHIELD , and INSTALLING THE HEAT SHIELD ON THE EXHAUST TURBOCHARGER, TOP .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to INSTALLING THE REAR WHEEL ON THE RIGHT .
Refer to CHECKING OIL LEVEL IN THE REAR AXLE DIFFERENTIAL , correct if necessary.
