Removing and installing/replacing rear left or right coil spring (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 358 630

CAUTION:

It is necessary to replace both coil springs of the respective axle only in the event of fracture of a coil spring due to corrosion!
The spring pads at the top and bottom must also be replaced when replacing the coil springs.

NOTE: The coil spring is allocated in the applicable BMW parts catalogue under the item "Spring table" after the vehicle identification number has been entered and the optional equipment of the car has been selected.

Necessary preliminary work:

Refer to REMOVING REAR WHEEL .

Removal:

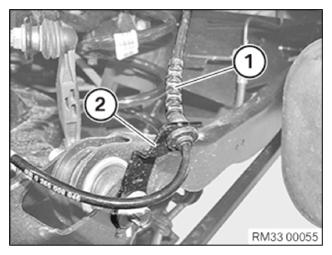

Unclip the cable of the wheel speed sensor (1) from holder (2).

On the right side, additionally unclip the cable of the brake pad wear indicator from the holder.

G15170745

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the special tool 2 358 630 to drive flange with wheel bolts.

Support trailing arm with special tool 2 358 630 and workshop jack on the wheel hub.

G15170746

Courtesy of BMW OF NORTH AMERICA, INC.

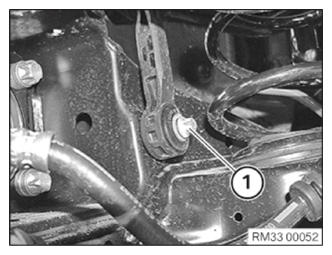

Undo screw (1) of anti-roll bar link on trailing arm.

G15170747

Courtesy of BMW OF NORTH AMERICA, INC.

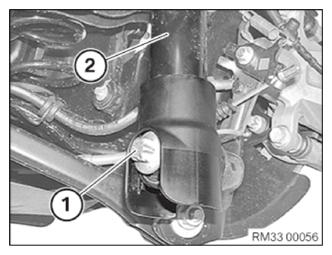

Detach shock absorber (2) from trailing arm by unscrewing screw (1).

G15170748

Courtesy of BMW OF NORTH AMERICA, INC.

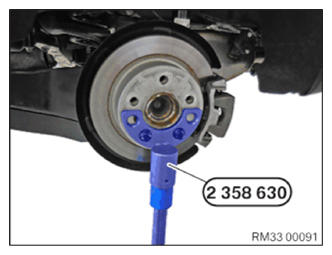

Lower workshop jack with the special tool 2 358 630 .

Place workshop jack to side.

NOTE: Special tool 2 358 630 can remain on wheel hub.

G15170749

Courtesy of BMW OF NORTH AMERICA, INC.

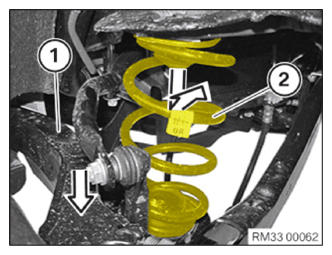

Pull trailing arm (1) down slightly.

Remove coil spring (2).

G15170750

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

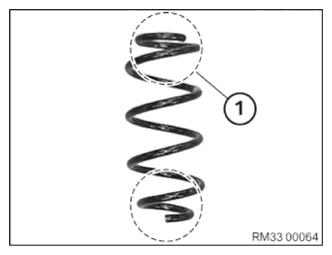

CAUTION: Incorrect assembly is possible.

The upper end of the coil spring (1) is flatter.

G15170751

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing spring: Replace top (1) and bottom (2) spring pads.

Parts: Top and bottom spring pad

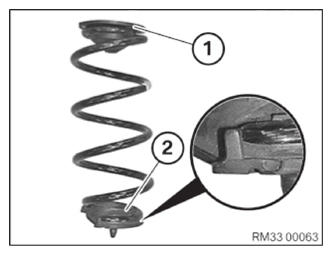

Fit spring pads on the coil spring at top (1) and bottom (2).

The end stop of the spring pad at the bottom must be in contact with the coil spring end.

G15170752

Courtesy of BMW OF NORTH AMERICA, INC.

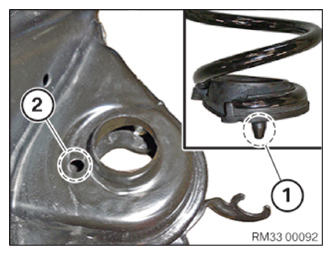

When installing spring, pin (1) of bottom spring pad must be inserted into bore hole (2).

G15170753

Courtesy of BMW OF NORTH AMERICA, INC.

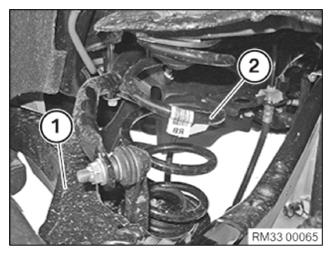

Pull trailing arm (1) down slightly.

Insert coil spring (2).

G15170754

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the universal jack into the special tool 2 358 630 .

Press trailing arm upwards with special tool 2 358 630 and the workshop jack until shock absorber can be screwed to the trailing arm.

G15170755

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 52 1AZ .

G15170756

Courtesy of BMW OF NORTH AMERICA, INC.

Position the anti-roll bar link on the trailing arm.

Tighten screw (1).

Tightening torque 33 55 2AZ .

G15170757

Courtesy of BMW OF NORTH AMERICA, INC.

Lower the universal jack and put it away.

Remove special tool 2 358 630 .

G15170758

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the cable of the wheel speed sensor (1) at the holder (2).

On the right side, additionally clip in the cable of the brake pad wear indicator in the holder.

G15170759

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING REAR WHEEL .
Refer to HEADLIGHT ADJUSTMENT , correct if necessary.
