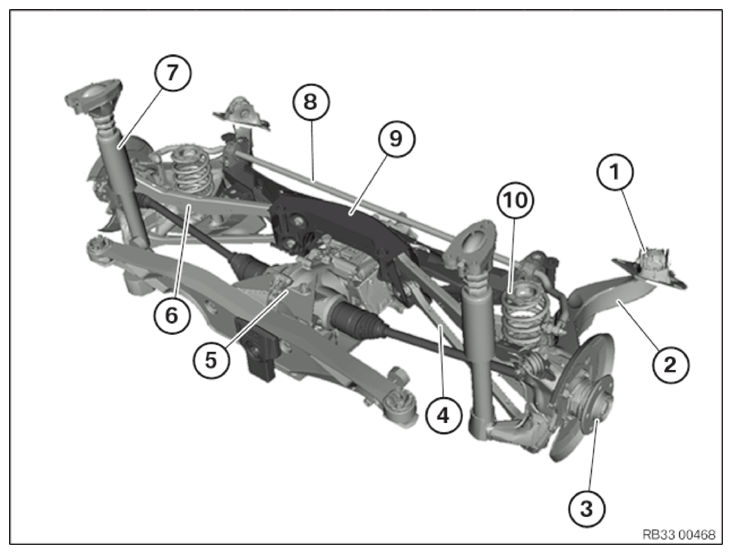

Overview of rear axle (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Trailing arm bearing support/rubber mount.
- Trailing arm .
- Wheel bearing
- Lower wishbone
- Rear axle final drive/output shafts
- Upper wishbone
- Shock absorber
- Anti-roll bar/anti-roll bar link
- Rear axle carrier
- Coil spring
Adjustment work. Refer to REAR AXLE: WHEEL ALIGNMENT MUST BE CARRIED OUT AFTER THE FOLLOWING REPAIRS .
