Rear axle: Wheel alignment must be carried out after the following repairs (X2 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Wheel alignment. Refer to KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE must be carried out after the following repairs:
- Release the following screw connection:
- Trailing arm bearing support to body
- Trailing arm bearing support to trailing arm rubber mount
- Upper wishbone to rear axle carrier
- Bottom wishbone at the rear axle support/trailing arm

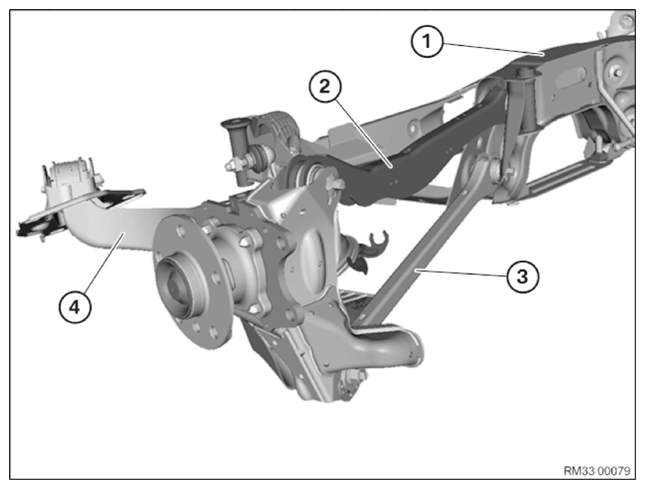

- Replacement of following parts:
- Rear axle carrier
- Upper wishbone
- Lower wishbone
- Trailing arm/trailing arm bearing support/rubber mount
