Installing the seal for the tailgate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Remove remnants of the sealant from the sheet metal flange.
Clean the sheet metal flange.

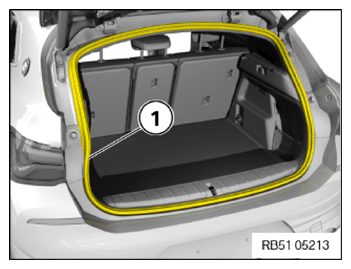

Replace the seal for the tailgate (1).
Parts: Seal for the tailgate
Mount the seal for the tailgate (1) beginning from the top center.
Make sure that the tailgate seal (1) is positioned correctly against all adjacent trim panels.
Check
Check the closing function of the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Tailgate does not close.

Measure
Make sure that the tailgate seal (1) is positioned correctly against all adjacent trim panels.

Follow-up work

Refer to INSTALLING BOTH TRIM PANELS FOR THE WATER GUTTER .
Refer to ATTACHING THE REAR HEADLINING .
Refer to INSTALLING THE BELT FEED TRIM .
Refer to INSTALLING THE TRIM PANEL FOR LEFT AND RIGHT THE LUGGAGE COMPARTMENT CAPPING .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
Refer to INSTALLING C-PILLAR TRIM PANEL AT BOTTOM LEFT AND RIGHT .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
