Replacing positive battery cable between starter motor, alternator and positive battery connection point (N55T0 Engine) (2016-2018)

Necessary preliminary tasks:

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Disconnect BATTERY NEGATIVE LEAD .
• Remove INTAKE PLENUM .
• Remove TRAILING LINK .

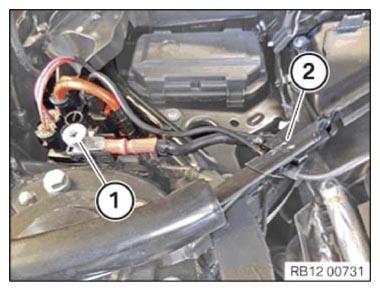

Loosen positive battery cable (1).

Tightening torque 12 42 3AZ .

Release clamp (2).

Feed out positive battery cable.

Courtesy of BMW OF NORTH AMERICA, INC.

Release positive battery cable from clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release rear cable strap (1) on cylinder head cover.

Replace cable straps.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 12 42 2AZ .

Disconnect positive battery cable from starter motor.

Release cable strap (2).

Replace cable straps.

Courtesy of BMW OF NORTH AMERICA, INC.

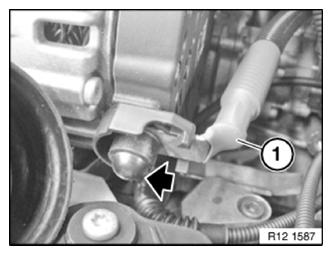

Remove protective cap and release nut underneath.

Tightening torque 12 42 1AZ .

Disconnect positive battery cable (1) from alternator.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip positive battery cable from holder (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
