Removing and installing or replacing front air outlet trim grille (4' Series Convertible)

Necessary preliminary tasks:

• Remove rear left/right HEAD RESTRAINTS .
• Remove left/right SIDE TRIM PANEL UPPER SECTION .
• Fold backrest forward
• Open flap for retractable hardtop, if necessary fold in retractable hardtop

Unclip trim (1) on left/right towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

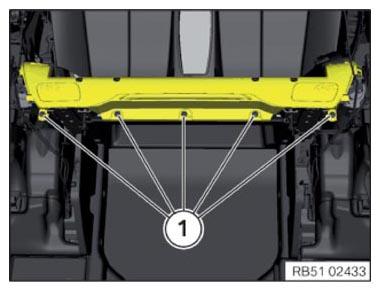

Release clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

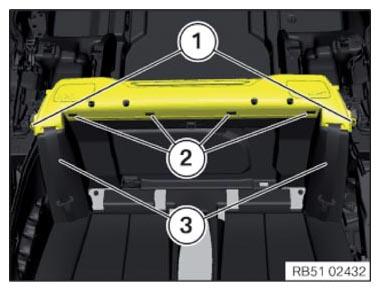

Release screws (1).

Lever out covers (2) and release screws underneath.

Feed out seat belts (3) and remove ornamental grille air outlet.

Courtesy of BMW OF NORTH AMERICA, INC.
