Removing and installing/replacing funnel for spring support (4' Series Gran Coupe Sedan)

Necessary preliminary tasks:

• Remove D-PILLAR TRIM PANEL

Danger of injury!

Support tailgate in fully opened position with suitable apparatus.

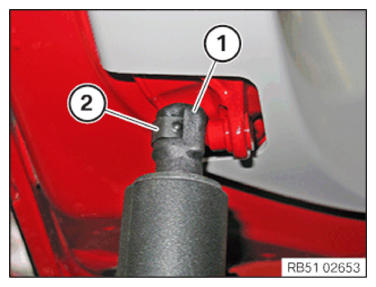

DISASSEMBLE  ball socket (1) with clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

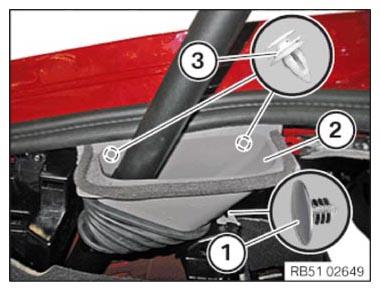

Remove clip (1).

Unclip funnel (2) from clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

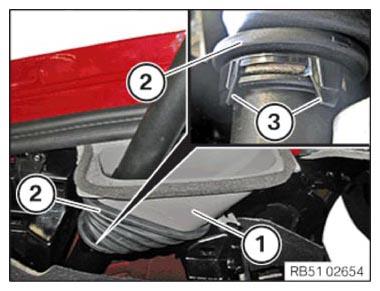

Release funnel (1) from gaiter (2) and remove upwards and out.

Release retaining lugs (3) and remove gaiter (2) upwards and out.

Installation note:

Assemble funnel (1) and gaiter (2) before installation.
