Removing and installing/replacing trim panel for D-pillar left (right) (4' Series Gran Coupe Sedan)

The operation is described for the left-hand side; proceed in the same way for the right-hand side.

Remove storage shelf at front.

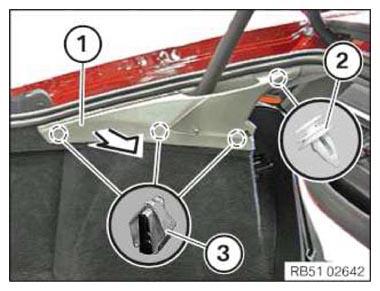

Unclip cover (1) at clip (2).

Release cover (1) from clamps (3) and remove in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
