37 12 310 Remove and install the shock absorber (VDM) on the rear left or right

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may tilt off vehicle hoist if the workshop jack is incorrectly handled.
When supporting components, make sure that:

the vehicle can no longer be raised or lowered.
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT:

Read and comply with INFORMATION ON REPLACING SHOCK ABSORBERS.

Necessary preliminary tasks:

Remove the REAR WHEEL
Remove the CAMBER ARM COVER

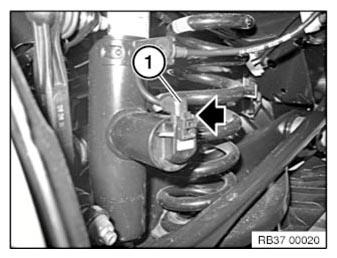

Unlock connector (1) in direction of arrow and pull off towards top.

Unclip wiring harness on shock absorber and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Support wheel carrier with workshop jack.

Slacken nut (1).

Tightening torque, refer to: 33 52 3AZ

Lift wheel carrier with workshop jack to the point where the screw can be removed.

Slowly lower workshop jack until wheel carrier is suspended.

Remove workshop jack from under vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screw and nut.

Note direction of insertion of screw.

Tighten down SCREW CONNECTION IN NORMAL POSITION.

Release screws (1) on support bearing.

Tightening torque, refer to: 33 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Press shock absorber together and remove upward from wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check protective cap (1) and sealing washer (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
