23 11 608 Replacing guide tube for clutch operator (GS6-17BG/DG)
WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove the TRANSMISSION .
- Remove the CLUTCH OPERATOR from the guide tube.
Removal:

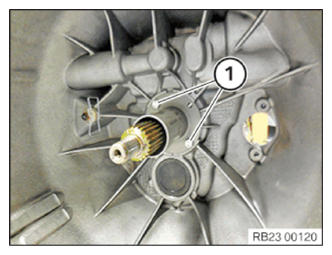

Release screws (1).
Remove guide tube.
Installation:
Parts: Replace screws.
Clean new guide tube.
Guide surface must be clean (no labels/stickers or residual adhesive, etc.).
Install the guide tube.
Insert screws (1) and tighten.
Tightening torque, refer to: 23 11 2AZ .
Required follow-up work:
- Install the CLUTCH OPERATOR .
- Install the TRANSMISSION .
