21 52 510 Removing and installing/replacing clutch slave cylinder (plastic)

Special tools required:

• 13 3 010

Necessary preliminary tasks:

• Remove rear UNDERBODY PROTECTION .

Removal:

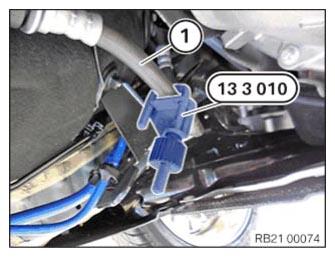

Seal hydraulic line (1) to clutch slave cylinder using special tool 13 3 010  .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bolts (1) and remove clutch slave cylinder (2) with holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

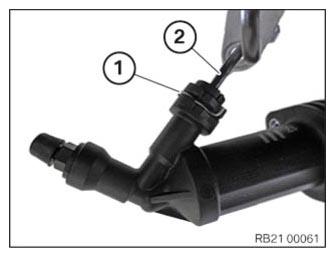

Unlock spring clamp (1).

Disconnect hydraulic line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press cylinder together by hand.

Courtesy of BMW OF NORTH AMERICA, INC.

Install hydraulic line (2) when pressed together.

Lock spring retention (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 13 3 010  from hydraulic line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

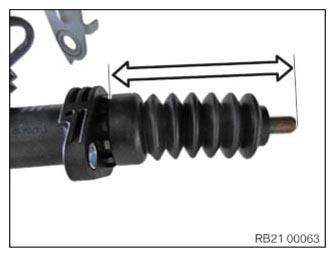

Hold cylinder piston vertically downwards.

Press piston 5 times into cylinder.

Courtesy of BMW OF NORTH AMERICA, INC.

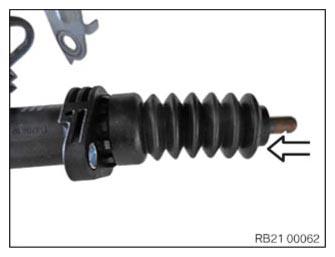

Press in piston until it engages.

Install clutch slave cylinder.

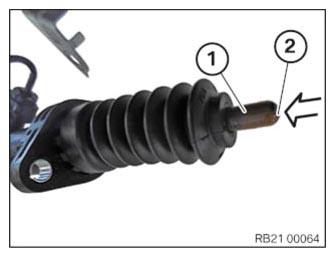

Clean thrust member (1) and contact surface on release lever.

Lightly grease thrust member (1) on contact surface (2).

Grease, refer to CLUTCH - OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Install clutch slave cylinder (2) with holder (3).

Tighten down screws (1).

Parts:  Replace screws (1).

Tightening torque, refer to: 21 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Bleed the CLUTCH HYDRAULIC SYSTEM .
• Install the rear UNDERBODY PROTECTION .
