21 52 500 Removing and installing/replacing clutch master cylinder

Necessary preliminary tasks:

• Remove the TRIM PANEL FOR PEDAL MECHANISM

Removal:

Turn locks (1) 90° counterclockwise.

Unlock latch mechanism (2).

Remove cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

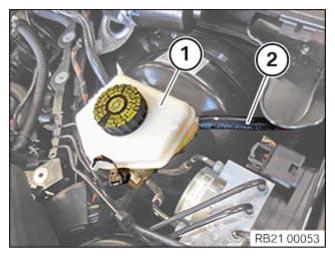

Draw off brake fluid up to supply hose of clutch hydraulic system (2).

• For this purpose, use only a vacuum pipe that is exclusively used for removing brake fluid.

Detach supply hose (2) from expansion tank (1).

Courtesy of BMW OF NORTH AMERICA, INC.

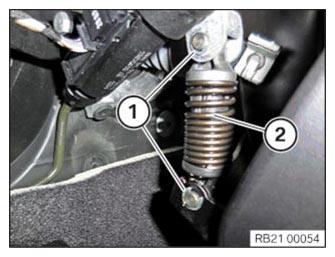

Detach clamps (1).

Push out the bolt and remove the return spring (2).

Courtesy of BMW OF NORTH AMERICA, INC.

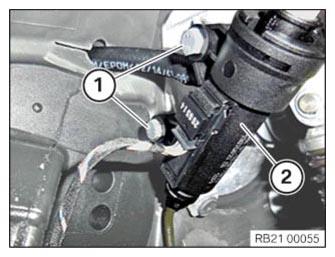

Release screws (1) on clutch master cylinder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

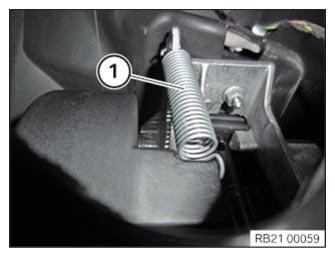

Unhook return spring (1) from clutch pedal.

Courtesy of BMW OF NORTH AMERICA, INC.

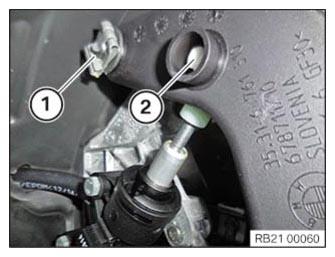

Detach retaining clip (1) and pull clutch pedal with clutch master cylinder off bearing support.

Press bolt ends (2) together and remove pin.

Courtesy of BMW OF NORTH AMERICA, INC.

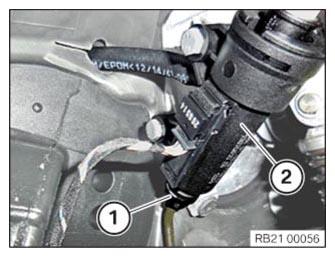

Detach clamp (1) using a screwdriver.

Detach hydraulic line from clutch master cylinder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

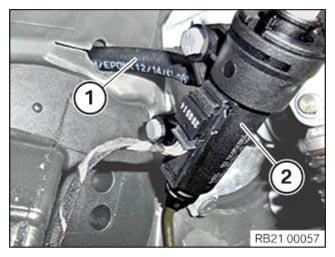

Detach supply hose (1) from clutch master cylinder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

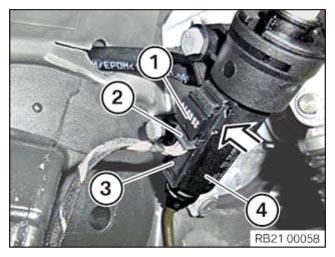

Lever clutch switch (3) out of clutch master cylinder (4) using a screwdriver.

Detach plug connection (1) and disconnect connector (2) from clutch switch (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clutch switch (3) is secured against incorrect assembly.

Clutch switch (3) must latch audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Latch connector (2) into plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect supply hose (1) to clutch master cylinder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect hydraulic line to clutch master cylinder (2).

Clamp (1) must latch into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Install clutch pedal with clutch master cylinder.

Install retaining clip (1).

Retaining clip (1) must be seated with both shanks in the bolt groove.

Parts:  Replace retaining clip (1) and bolt.

Courtesy of BMW OF NORTH AMERICA, INC.

Hook return spring (1) onto clutch pedal.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolts (1) on clutch master cylinder (2).

Tightening torque, refer to: 21 52 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the return spring (2) and insert a lightly greased bolt.

Install retainers (1).

Parts:  Check retainer (1), replace if necessary.

Both shanks on retainers (1) must rest in groove of bolts and latch audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect supply hose (2) to expansion tank (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (3).

Lock latch mechanism (2).

Rotate locks (1) through 90° in clockwise direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Bleed the CLUTCH HYDRAULIC SYSTEM .
• Install the TRIM PANEL FOR PEDAL MECHANISM
