31 11 001 Replacing front axle support

WARNING: This page is about a different car, the 2018 BMW 340i, 2018 BMW 330i, 2017 BMW 340i, 2017 BMW 330i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!

Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.

When supporting components, make sure that:

the vehicle can no longer be raised or lowered.
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT: Before lowering/removing front axle support:
Observe the SAFETY INFORMATION on raising the vehicle.
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.

Load spring strut domes with sand bags.

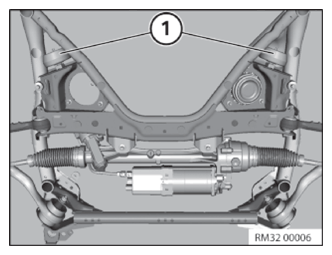

NOTE: From 01/2013 vibration absorbers (1) are installed on the front axle support on vehicles with rear-wheel drive and run-flat tires!

Tightening torque, refer to:31 10 5AZ.

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger to life!
Secure engine in installation position with special tool to prevent it from falling down.

Necessary preliminary tasks:

Secure engine in installation position.
Clamp off BATTERY EARTH LEAD .
Remove the FRONT WHEELS .
Remove the STEERING SHAFT FROM STEERING GEAR .
Remove the ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .
Remove the BOTH TRACK RODS FROM SWIVEL BEARING .
Remove the WISHBONE FROM FRONT AXLE SUPPORT .
Remove the TENSION STRUTS FROM FRONT AXLE SUPPORT .

The subsequent procedure is described under "LOWERING/RAISING FRONT AXLE SUPPORT ".

Remove heat shield(s) from front axle support.

Remove jacking point from front axle support.

Remove engine mount.

Remove the STEERING BOX .

Remove the ANTI-ROLL BAR .

Installation note:

Use previous front axle support as a template for remounting or replacing small parts.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out WHEEL ALIGNMENT PROCEDURE .
