22 32 055 Removing and installing/replacing transmission bearing block

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the RUBBER MOUNTS FOR GEARBOX MOUNTING .

Removal:

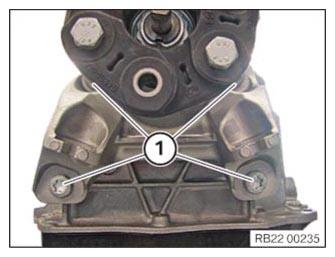

Release screws (1).

Remove transmission mounting bracket from transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install transmission mounting bracket at the transmission.

Tighten down screws (1).

Tightening torque, refer to: 22 32 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the RUBBER MOUNTS FOR GEARBOX MOUNTING .
