22 32 001 Replacing rubber mount for transmission mounting

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the rear UNDERBODY PROTECTION .
Remove heat shield.
Support transmission with lifter.

Removal:

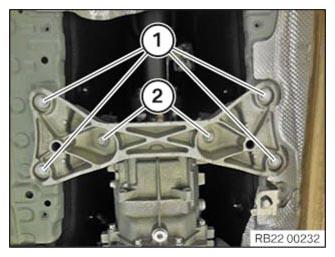

Loosen screws (1).

Unscrew nuts (2).

Remove transmission cross-member.

Courtesy of BMW OF NORTH AMERICA, INC.

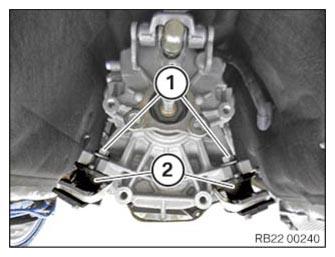

Unscrew nuts (1).

Remove rubber mount (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install rubber mount (2).

Tighten down nuts (1).

Tightening torque, refer to: 22 32 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install transmission cross-member.

Tighten down nuts (2).

Tightening torque, refer to: 22 32 2AZ .

Tighten down screws (1).

Tightening torque, refer to: 22 32 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install heat shield.
Install the rear UNDERBODY PROTECTION .
