12 51 235 Removing and installing/replacing the engine wiring harness for the sensor system at module 1 (B48)
Attention!
Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)!
Necessary preliminary work:
- Remove the INTAKE PLENUM .
- Remove the TRANSMISSION OIL COOLER FOR AUTOMATIC TRANSMISSION.
- Remove the FRONT UNDERBODY PROTECTION .
- Remove the REAR UNDERBODY PROTECTION .
- Remove the ACOUSTIC COVER oil sump (loosen).
Removal:

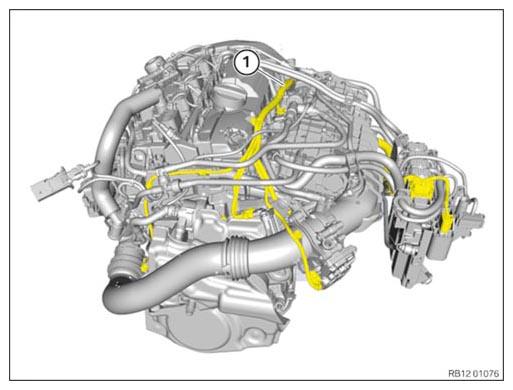

Overview of engine wiring harness for sensor system module 1 (1)
Overview of engine wiring harness for sensor system module 1 (1)
Unlock and loosen clamp along the arrows.
Remove cover (1).
Unlock and remove connector (1) in direction of arrow.
Unlock and disconnect plugs (2).
Unfasten cable clip (3).
| Unlock and disconnect following connectors and lines | |
| Unlock and pull off the connector for the charging pressure sensor from the intake plenum. | |
| Unlock and disconnect the connector for the charging pressure sensor before the throttle valve. | |
| Unlock connector on throttle body and disconnect | |
| Unlock connector on oil level sensor and disconnect | |
| Unlock connector on solenoid valve and pull off. | |
| Unlock connector on crankshaft sensor and disconnect | |
| Unlock connector on oil pressure switch and disconnect | |
| Unlock and pull off the connector for the knock sensor. | |
| Unlock and pull off the connector for the coolant temperature sensor. | |
| Unlock and pull off connector alternator. |
Release engine wiring harness for sensor system module 1 from any clips and clamps if necessary.
Remove the engine wiring harness for sensor system module 1.
Installation:
Overview of engine wiring harness for sensor system module (1)
Feed in and install the sensor system 1 wiring harness (1).
Loosen the clamps along the arrows.
Overview of engine wiring harness for sensor system module 1 (1)
Feed in and install sensor system 1 wiring harness (1).
| Unlock and disconnect following connectors and lines | |
| Connect and lock the connector for the charging pressure sensor from the intake plenum. | |
| Connect and lock the connector for the charging pressure sensor before the throttle valve. | |
| Connect and lock the connector from the throttle body. | |
| Connect and lock the connector from the oil-level sensor. | |
| Connect and lock the connector from the solenoid valve. | |
| Connect and lock the connector from the crankshaft sensor. | |
| Connect and lock the connector from the oil pressure switch. | |
| Connect and lock the connector from the knock sensor. | |
| Connect and lock the connector from the coolant temperature sensor. | |
| Connect and lock the connector from the alternator. |
Unlock and release the connector (4) for the wiring harness-sensor system 1.
Unlock and loosed the connector (3) wiring harness sensor system 2.
Unlock and loosen the connector (2) wiring harness - section for supply module.
Unlock and loosen the connector (1) Valvetronic servomotor.
All connectors must audibly engage.
Install cover (1).
Installation note:
Check the wiring harness installation arrangement.
Check that the plug connections are correctly fitted.
Necessary preliminary work:
- Install the TRANSMISSION OIL COOLER FOR AUTOMATIC TRANSMISSION.
- Install the INTAKE PLENUM .
- Install the ACOUSTIC COVER oil sump.
- Install the FRONT UNDERBODY PROTECTION .
- Install the REAR UNDERBODY PROTECTION .
