12 51 210 Replacing wiring harness section for ignition and injectors (B48)

WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)!

Necessary preliminary tasks:

Disconnect the BATTERY NEGATIVE LEAD .
Remove the CORROSION PROTECTION COVER .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

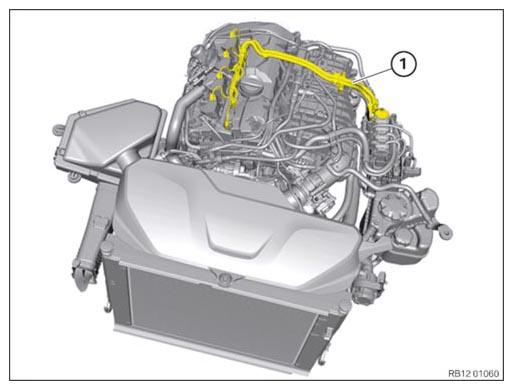

Overview of wiring harness section (1) for ignition and injectors.

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach connector (1) along the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and release connectors along the arrows.

Loosen nut (1), remove ground cable (2) and place to one side.

Raise cable channel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) at injectors.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To disconnect the connectors at the injectors, the lock (1) needs to be pulled out in the direction of the arrow first. Then compress the lock (1) and pull off the connector at the same time.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Unlock holder (2) and release.

Unlock holder (3) and release.

Thread out the wiring harness for the ignition and injectors (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in and install the ignition and injector wiring harness (4).

Connect holder (3) and lock.

Connect holder (2) and lock.

Secure clamp (1).

The holder and clamp must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connectors (1) to the injectors.

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector on the injectors until the lock (1) engages audibly.

Then lock the lock (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in cable channel (3) and install.

Insert ground cable (2) and tighten nut (1).

Tightening torque, refer to: 12 52 5AZ .

Connect and lock connectors along the arrows.

Connectors must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock connector (1) along the direction of the arrow.

All connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the CORROSION PROTECTION COVER .
Connect the BATTERY EARTH LEAD .
