12 41 041 Replacing the engagement solenoid switch
WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Switch off ignition.
- Remove the STARTER MOTOR .
Slacken nut (1).
Remove cable head (2).
IMPORTANT:
Do not twist cable head (2) when tightening, risk of short circuit to starter motor housing.
Tightening torque, refer to: 12 41 1AZ.
Tightening torque, refer to: 12 41 1AZ.
Unscrew the screws (1).

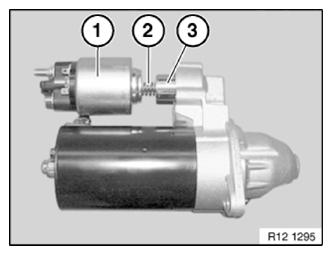

Remove the solenoid switch (1) and the spring (2).
Detach the bolt (3).
Installation note:
Check the bolt (3) for wear and grease the bolt.
