52 24 010 Remove and install rear seat backrest (basic seat) (2' Series convertible models)

Necessary preliminary tasks:

• Open soft top
• Refer to REMOVING HEAD RESTRAINTS .

Removal:

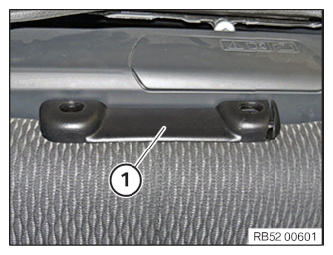

Pull off cover (1) on left and right forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

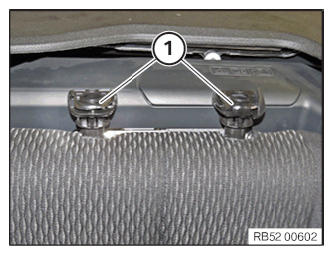

Pull up all guide sleeves (1) for head restraint, rear left and right up to the first catch.

Courtesy of BMW OF NORTH AMERICA, INC.

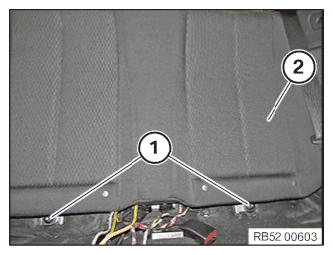

Release screws (1).

Raise rear seat backrest (2) upwards out of the guides and remove from the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

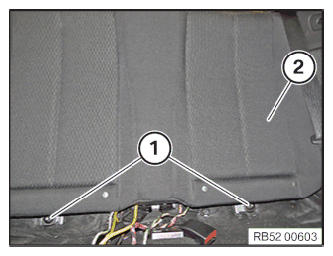

Attach rear seat backrest (2) on the top to the guides and feed in towards the bottom.

Tighten down screws (1).

Tightening torque 52 24 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

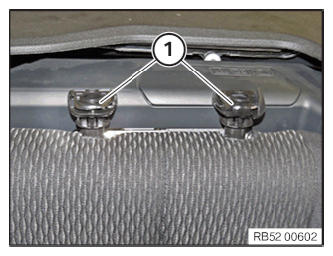

Press down all guide sleeves (1) for head restraints, rear left and right and engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Install left and right roof trim (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING HEAD RESTRAINTS .
• Close soft top.
