52 26 210 Removing and installing/replacing headrest for left or right rear seat (2' Series coupe and convertible, 2017-2021) (2' Series coupe models)

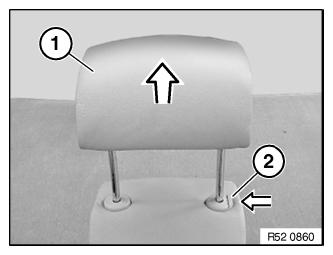

Fold the rear seat backrest forward and adjust the headrest (1) to the maximum top position.

Press lock (2) and pull upwards and out head restraint (1).

G15358004Courtesy of BMW OF NORTH AMERICA, INC.
