63 12 003 Removing and installing (replacing) left headlight (2' Series coupe and convertible, 2017-2021)

Necessary preliminary work:

• Refer to REMOVING FRONT BUMPER PANEL .

Unlock and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

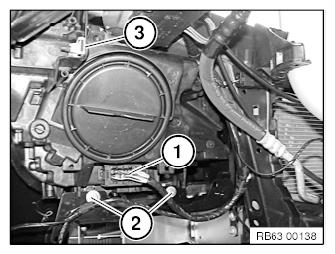

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 63 12 1AZ .

Release screw (3).

Tightening torque 63 12 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 63 12 1AZ .

Carefully remove headlight (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly install headlight (1) relative to holder (2).

ADJUSTING HEADLIGHT .

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

US version: CHECKING BLOCKING AT HORIZONTAL POSITION .

Release screws (1).

Remove holder (2) from headlight (3).

Convert bulbs if required. Refer to REPLACING HALOGEN BULB FOR HEADLIGHT ON LEFT (2' SERIES COUPE MODELS) . Note BULB TYPES .

Courtesy of BMW OF NORTH AMERICA, INC.
