63 99 072 Replacing halogen bulb for headlight on left (2' Series coupe models)

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Unlock and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

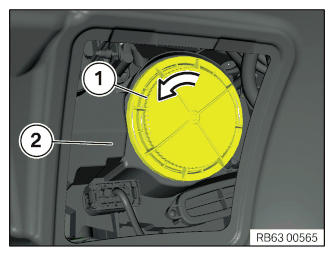

Turn protective cap (1) in anti-clockwise direction and remove from headlight (2).

IMPORTANT: Risk of damage due to moisture penetration!

Installation note:

Check seal. Replace protective cap (1) if necessary.

Protective cap (1) must lock correctly!

Twist protective cap (1) clockwise up to limit position!

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) counterclockwise and pull out

Installation note:

Make sure retaining tabs (2) in headlight are correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach bulb (1) from bulb holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Recommendation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
