51 24 105 Removing and installing/replacing tailgate lock (2' Series coupe and convertible, 2017-2021)

Necessary preliminary tasks:

• Refer to REMOVING TAILGATE TRIM PANEL .

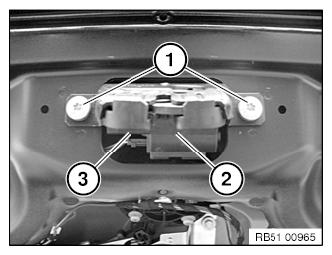

Release screws (1).

Tightening torque 51 24 1AZ .

Maneuver out rear lid lock (2) and unlock and disconnect plug connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform a function check of tailgate lock with the tailgate open.

Concluding tasks:

Adjust TAILGATE CATCH .
