51 24 004 Adjusting rear lid lock (2' Series coupe and convertible, 2017-2021)

Special tools required:

Prerequisite:

Rear lid must be correctly adjusted to fit; if necessary, ADJUSTING REAR LID .

For ideal adjustment, refer to BODY DIMENSIONS .

Completely screw in stop pad (1) left/right.

Courtesy of BMW OF NORTH AMERICA, INC.

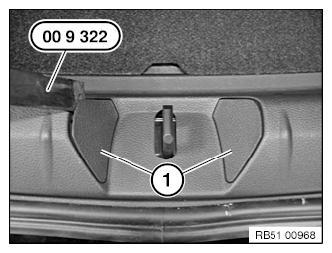

Lift out covers (1) using special tool 00 9 322 .

Courtesy of BMW OF NORTH AMERICA, INC.

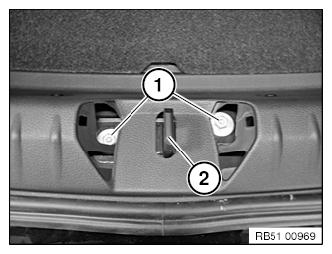

Slacken screws (1) until striker (2) can still just be moved and centers itself.

IMPORTANT: Striker (2) must not brush against rear lid lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Close rear lid.

Check BODY DIMENSIONS and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the rear lid lock. Look out for scratch marks.

Open tailgate.

Tighten down screws (1).

Tightening torque 51 24 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

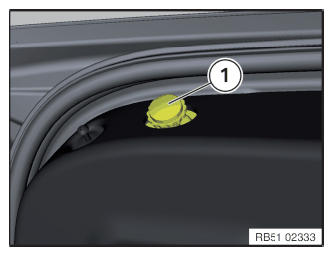

Screw out stop pad (1) left/right until they are in contact with the tailgate.

It must be possible to pull out paper strips with moderate friction resistance between the tailgate and stop pad (1).

Then screw out stop pad (1) one-half rotation further.
