51 12 825 Removing and installing/replacing guide for rear center bumper panel (2' Series coupe and convertible, 2017-2021)

Necessary preliminary tasks:

• Refer to REMOVE  rear bumper trim

Feed out cable (1).

Unscrew nuts (2).

Tightening torque 51 12 2AZ .

Remove guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

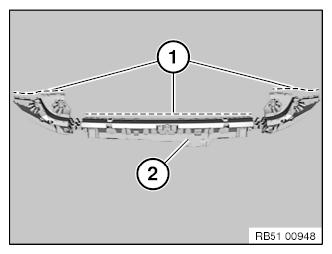

Latch mechanisms (1) of guide (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
