33 41 151 Replacing left or right wheel bearing on rear axle shaft (X6 2015-2019)

Attention!

Do not damage multipole impulse ring.

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

• Remove DRIVE FLANGE FOR REAR AXLE SHAFT .

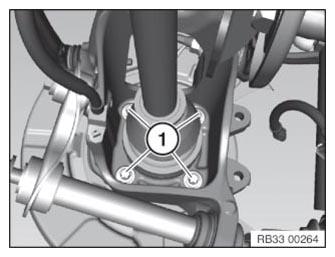

Loosen screws (1).

Tightening torque 33 41 2AZ .

Remove wheel bearing.

Installation note:

Replace screws (1).

Installation note:

Keep contact surface (1) of wheel bearing/wheel carrier clean and free from oil and grease.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Adjust PARKING BRAKE .
