11 12 005 Removing and installing/sealing left cylinder head cover (N63) (X6 xDrive 50i)

Special tools required:

• 11 4 470

Necessary preliminary tasks:

• Disconnect NEGATIVE TERMINAL .
• Remove ACOUSTIC COVER .
• Remove INTAKE SILENCER HOUSING .
• Disconnect FUEL DELIVERY LINE .
• Remove left INTERCOOLER .
• Remove coolant valve for heater feed line.
• Detach wiring harness for injectors and lay to one side.
• Remove IGNITION COILS , cylinders 5-8.
• Remove INJECTORS , cylinders 5-8.
• Remove HIGH PRESSURE PUMP .
• Remove VACUUM PUMP .
• Remove CATALYTIC CONVERTER for cylinders 1-4.
• Remove CATALYTIC CONVERTERS , cylinders 5-8.

Release screws (1).

Remove heat shield (2).

Tightening torque: 11 65 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

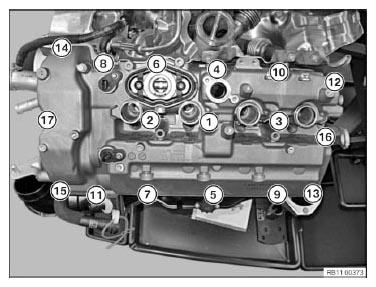

Release screw connections in the sequence (16 to 1).

Remove cylinder head cover.

Clean sealing surface (1) with special tool 11 4 470.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace profile seals (1 and 2) of cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

It is important to join screw (15 and 16) for exact positioning of the camshaft sensors.

Mount cylinder head covers.

Position screw (15 and 16).

Release screws again by a 90° turn.

Secure cylinder head cover in sequence (1 to 17) in two work steps.

Tightening torque 11 12 3AZ .

Assemble engine.
