Removing and installing/replacing front axle differential (X6 M)

Necessary preliminary tasks:

• Only disconnect N47, N57: NEGATIVE BATTERY CABLE .
• Remove LEFT OUTPUT SHAFT .
• Secure RIGHT OUTPUT SHAFT WITH SPECIAL TOOL .
• Remove FRONT PROPELLER SHAFT .
• Lower FRONT AXLE SUPPORT .

N57 only:

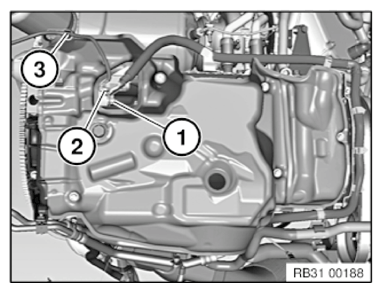

Slacken nut (1).

Tightening torque 12 52 3AZ. .

Disconnect positive wire from starter motor.

Loosen the nut (2).

Tightening torque 12 52 1AZ. .

Disconnect cable (terminal 50) and release from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

N57 only:

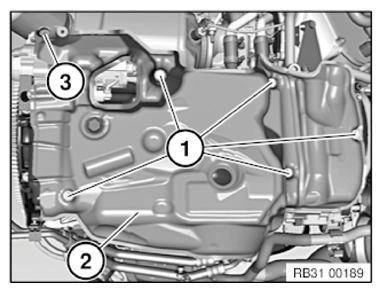

Release plastic screw (3).

Tightening torque 11 14 1AZ. .

Loosen screws (1).

Tightening torque 11 14 2AZ. .

Remove acoustic cover (2) from the oil sump.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Danger of injury!

When releasing the last bolt, grip the front axle differential to prevent it from falling down.

Detach ventilation line (4).

Release bolts (1-3).

Tightening torque 31 50 1AZ .

Remove front axle differential.

Installation note:

During removal and installation: Replace O-RING .

Coat O-ring with front axle differential oil.

Make sure screws are installed in correct positions.

Courtesy of BMW OF NORTH AMERICA, INC.

• Bolt (1) M12x105
• Bolts (2) M12x55
• Bolt (3) M12x76 (M12x55)

After installation:

• Fill FRONT AXLE DIFFERENTIAL WITH OIL .
• Carry out steering angle sensor adjustment/alignment for active front steering.
• Program the SOFTWARE END STOP for electrical steering.
