Replacing both pressure converters for turbocharger (S63T2) (X6 M)

Necessary preliminary tasks:

• Remove right INTERCOOLER .

Pressure converter, cylinders 1-4:

Disconnect plug connection (1) on pressure converter.

Pressure converter, cylinders 5-8:

Disconnect plug connection (2) on pressure converter.

Courtesy of BMW OF NORTH AMERICA, INC.

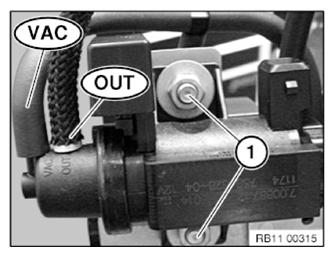

Pressure converter, cylinders 1-4:

Remove holder from cylinder head.

Disconnect vacuum hose at connection (VAC = vacuum reservoir).

Disconnect vacuum hose at connection (OUT= turbocharger vacuum unit).

Unscrew nuts (1).

Tightening torque 11 65 12AZ .

Remove pressure converter (EDPDW).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Cylinder 1-4 is equipped with a fabric hose (OUT).

Pressure converter, cylinders 5-8:

Disconnect vacuum hose at connection (VAC = vacuum reservoir).

Disconnect vacuum hose at connection (OUT= turbocharger vacuum unit).

Unscrew nuts (1).

Tightening torque 11 65 12AZ .

Remove pressure converter (EDPDW).

Installation note:

Cylinder 5-8 is equipped with a molded hose (OUT).

Courtesy of BMW OF NORTH AMERICA, INC.

All plug connections must audibly snap into place.

Check activation via diagnosis system.
