Removing and installing/replacing right luggage compartment wheel arch panel (X6 M)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Remove RIGHT STORAGE COMPARTMENT .
• Remove TRIM FROM C-PILLAR AT BOTTOM RIGHT .

Removal:

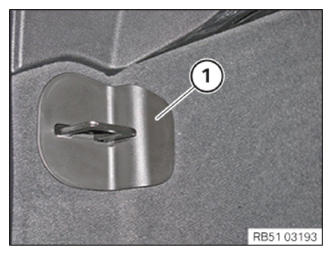

Remove cover (1) using special tool 00 9 325.

Courtesy of BMW OF NORTH AMERICA, INC.

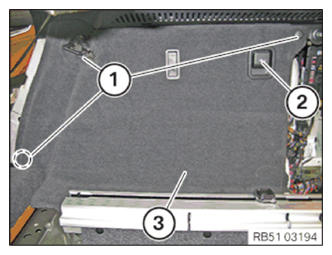

Release clamps (1).

Disconnect plug connection on charging socket (2).

Feed out luggage compartment wheel arch panel (3) in inwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Remove charging socket (1).

Equipment specification with storage compartment package:

Remove multifunction hook (2).

Remove tensioning strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Saw out openings with an oscillating saw and a straight blade on the molding.

Feed in luggage compartment wheel arch panel (3).

Connect plug connection to power socket (2).

Mount clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install STORAGE COMPARTMENT AT RIGHT .
• Install TRIM ONTO C-PILLAR AT BOTTOM RIGHT .
