Removing and installing/replacing trim on C-pillar at bottom left or right (X6 M)

Special tools required:

Removal:

Detach edge protection (1) along trim (2).

Release clamps (3 and 4) with special tool 00 9 325.

Remove trim (2) towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

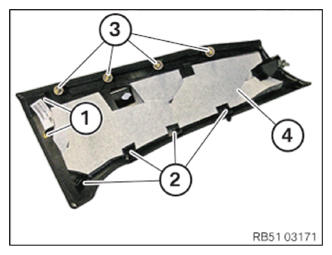

NOTE: Guides (1 and 2) on trim (4) must not be damaged.
Replace missing and damaged clamps (3).
Fit all clips with sealing ring.

Courtesy of BMW OF NORTH AMERICA, INC.

Install trim (2).

NOTE: Check trim is correctly seated in mountings.

Latch clips (3 and 4) into place.

Mount edge protection (1) along the trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.
