Removing and installing/replacing battery cover (X6 M)

Necessary preliminary tasks:

• Lift up TRIM PANEL FOR LUGGAGE COMPARTMENT FLOOR .

Removal:

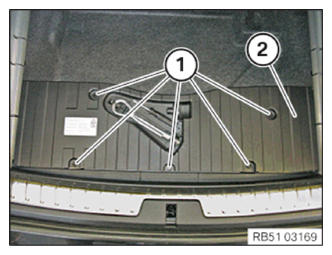

Release screws (1).

Lift off battery cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Remount toolkit from battery cover.

Install battery cover (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Lower  TRIM PANEL FOR LUGGAGE COMPARTMENT FLOOR
