Removing and installing/replacing trim panel for luggage compartment floor (X6 M)

Removal:

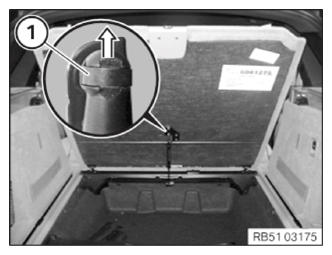

Push retaining spring (1) to end of gas pressure spring.

Remove gas pressure spring from ball head.

Courtesy of BMW OF NORTH AMERICA, INC.

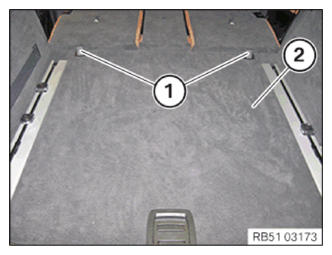

Open covers (1) remove concealed screws.

Remove luggage compartment floor (2) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Remount HANDLE ONTO TRIM PANEL FOR LUGGAGE COMPARTMENT FLOOR .

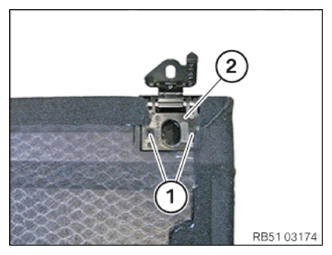

Release screws (1).

Remount hinge (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remount mounting plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install luggage compartment floor (2).

Tighten screws and close covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install retaining spring (1) correctly.

Latch gas pressure spring into ball head.

Courtesy of BMW OF NORTH AMERICA, INC.
