Remove and install (replace) headlining (equipment specification with slide/tilt sunroof) (X6 M)

Necessary preliminary tasks:

Complete removal only:

Removal:

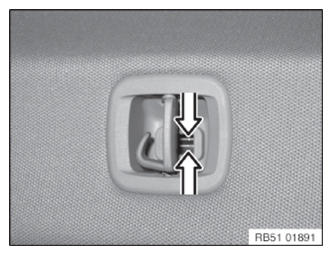

Open coat hook halfway.

Press clamps together and feed coat hook out towards the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

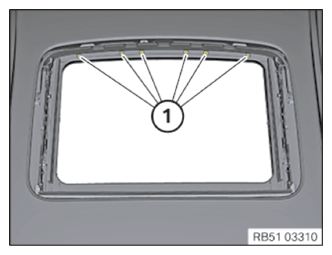

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

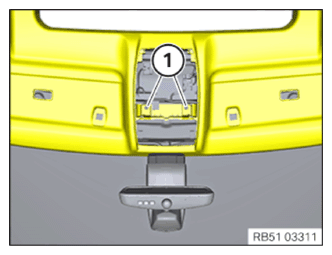

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

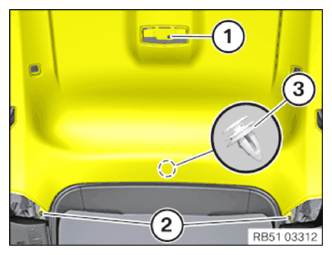

Release screw (1).

Remove expanding rivet (2).

Detach headlining from clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The following tasks must be carried out with a second person assisting:

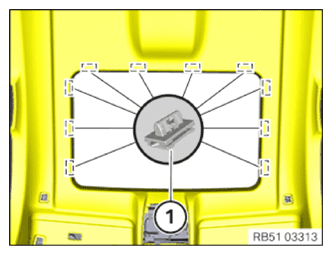

Unclip headlining from clips (1) downwards in area of sliding roof frame.

Take off headlining in vehicle interior.

Complete removal only:

Feed headlining through windscreen opening and out of vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install headlining and fix in place with edge protection.

Clip headlining onto clips (1) in area of sliding roof frame.

NOTE: If necessary, replace faulty clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip headlining into clip (3).

Tighten screw (1).

Install expanding rivet (2).

Install coat hook.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Only after complete removal:
