Removing and installing/replacing trim panel for rear roof pillar (D-pillar), left or right (X6 M)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Remove C-PILLAR TRIM AT BOTTOM  left/right

Removal:

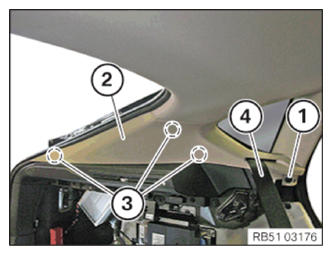

Release expansion rivet (1).

Detach trim panel (2) using special tool 00 9 325 from clamps (3).

Carefully remove trim panel (2) to avoid damaging the headlining.

Feed out seat belt (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in seat belt (4).

Clip trim panel (2) into clips (3).

Mount expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM FOR C-PILLAR AT BOTTOM  left/right
